Product features:
1. Easy to use, one-button operation, automatic completion of the mosaic operation process from heating, heat preservation, automatic pressure compensation, cooling and unloading, making the mosaic process simple and efficient.
2. Shorter mounting time and high sample preparation efficiency. Advanced heating technology and optimized cooling system,
3. Ultra-short sample insertion time, about 7 minutes for samples with a diameter of 30mm (about 25 minutes for 302 models)
4. Double-station design, independent operation, higher production efficiency.
5. Optional spacer, two samples can be made at a time.

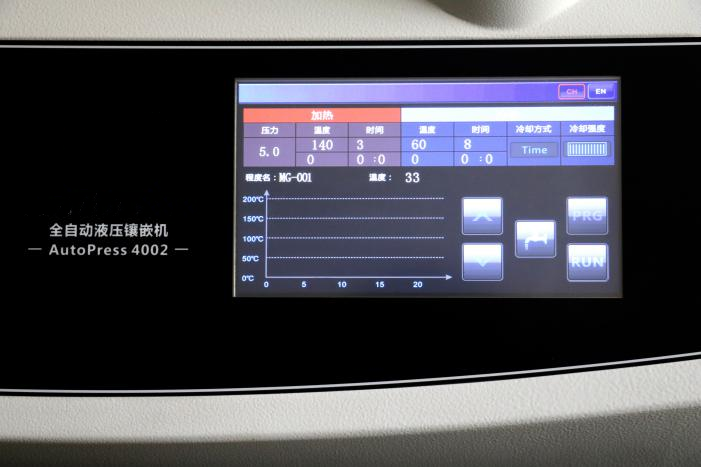

6. Three cooling modes are available: temperature, time and manual; Characteristic pulse cooling technology, controllable cooling intensity and water saving.
7. Multiple safety protection, automatic power failure due to overheating.
8. Streamlined high-temperature resistant and high-strength composite shell, never rusting.
9. Optional external circulating cooling water tank can save water and reduce cost.
Scope of application:
used in automobile, aerospace, electronics, manufacturing, education and scientific research industries.
Product description:

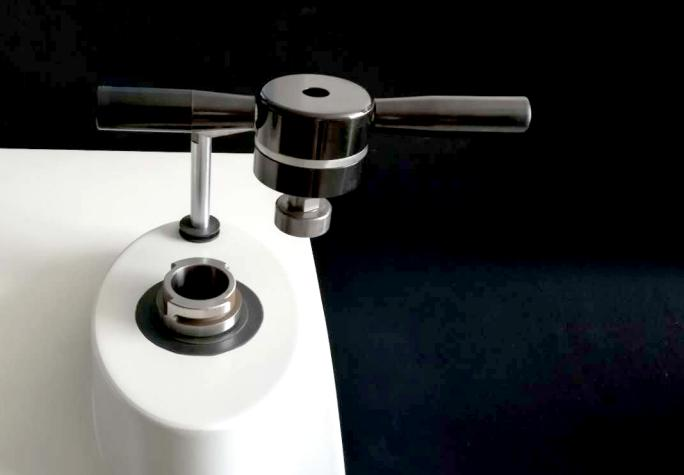

AutoPRESS dual cylinder series are programmable automatic hot mounting presses with very high efficiency. The dual cylinders can work independently. In addition to being efficient, the machines offer users more control for both the heating and cooling cycles as compared to most competitive hot mounting presses. Wide selection of mould assemblies from
25 to 50 mm in diameter are available. Ideal for metallographic specimen compression.
| Description | AutoPRESS 302 | AutoPRESS 502 | AutoPRESS 1202 | AutoPRESS 4002 |
|---|
| Operation | Automatic |
| Pressure | Air | Air | Hydraulic | Hydraulic |
| Cooling | Automatic/manual |
| Mold | ○25 ●30 ○40 ○50mm, others can be customized |
| Max Force（kgs） | 300 | 500 | 1200 | 4000 |
| Max Tem（℃） | 180 | 180 | 200 | 200 |
| Heater | 1.2KW | 2.4KW | 2.4KW | 3KW |
| Dimension(WxDxH) | 600x560x430 | 600x560x430 | 540x560x430 | 540x560x430 |
| Weight | 45Kg | 45Kg | 65Kg | 77Kg |
| Power | 220V50Hz |
| Air source | Need | Need |
|
|
| Cooling Water | Need |
| Mold Release | ○ | ○ | ○ | ○ |
| Black Resin | ● | ● | ● | ● |
| Green Resin | ○ | ○ | ○ | ○ |
| Red Resin | ○ | ○ | ○ | ○ |
| Conductive Resin | ○ | ○ | ○ | ○ |
| Edge-protection Resin | ○ | ○ | ○ | ○ |
| Transparent Resin | ○ | ○ | ○ | ○ |
| Air filter | ● | ● | ● | ● |
| Funnel&Spoon | ● | ● | ● | ● |
| Drains | ● | ● | ● | ● |
●standard ○option
